Stone Axe/All Time High Poster + the typeface creation

Here's another poster idea I had for awhile waiting for a show it'd go with. Unfortunately the show it was originally intended for had any and everything go wrong during the booking and never got off the ground. Since I worked with both Stone Axe and All Time High I figured it'd be a sweet way of saving the poster by giving it to them. I'm usually more into an illustration after I finish it if I do something I've never done before and exceeded my expectations of what I can do. I still look at this one with pride especially the typeface of the bands, so I'll talk about that.

(((Click on every image to enlarge)))

Below is the final band typefaces, all pretty and done up right.

1: Setting the Type:

Here I created a curved Path and used the Type Tool to set the centered type on the Path.

2: Separating into Letters:

Next up I selected each letter with the magic wand and created a Color Fill Layer for each. Time spent on this can be reduced by creating an Action that handles the process after the Letter is selected. After the Color Fill Layers were created I added and subtracted a bit of each letter to keep them interesting.

Here's the Layers:

3: Overlapping the Letters and Creating Inside and Outside Borders:

Next I moved the Letter Layers around to overlap each other, this took a few minutes until I got the right balance but was worth it. I used the 'Inner Glow' and 'Stroke' Effects under 'Blending Options' to create a dark outter and light inner border. I did one then used the 'Copy Layer Style' and 'Paste Layer Style' option for the rest by right clicking the layers.

An example of the Layers with the Style:

An example of each Effect Setting:

4: Inner Border Fade Out:

Below is a pic of the Inner Border Fade added:

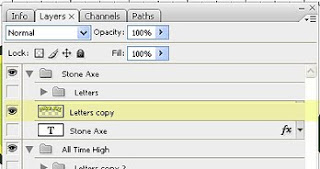

First up I made a copy of all of the Letters and Merged them all together to form a new single Layer.

I then used the magic wand to select each of the inner border parts:

I created a new dark green Color Fill Layer using that selection as a Mask for the shape of it.

Below you'll see the dark green Color Fill Layer as "Color Fill 8" and the group its in "inside bottom stroke fade copy". I created a mask for that group and used a Brush with the hardness set to Zero to fade in the dark green of the Inner Border.

5: Inside Darker Top Fill Fade Out:

Below you'll see a pic of the type with a halftone and dark green fade in on the top:

To Start I selected the Inner Color area on the merged down Letters layer I created previously and then created a dark green Color Fill Layer from the selection.

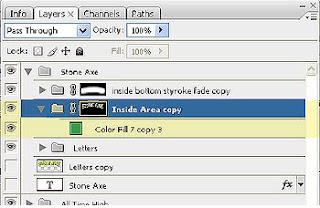

I moved the mask to a new Group I created, titled below as "Inside Area copy":

Next up I got a halftone that would work well and created a Color Fill Layer from it:

I then created a new Group inside the former Group and called it 'Darks copy' before putting the halftone with the new group ontop of the dark green Color Fill Layer....

...which created this effect:

To create the Fade In effect of the halftone and dark gree color I did something similar to end of Step 4 and used a brush with a hardness of Zero to fade out the Darker Layers:

6: Inside Lighter Bottom Fill Fade Out:

Here's the final step and finished product:

...and if I need to explain how this was created then I've done a bad job of explaining the other parts.

Hope this sheds some light on the created look/effect, as with everything in Photoshop theres a thousand ways to achieve the same goal. I created this a few months ago and already know a couple ways to cut out some of these steps, but hey, keeping it real.

Some work in progress pics:

AND! Just because this blogpost is long enough as is, here's some close ups:
